R.C. ALLEN

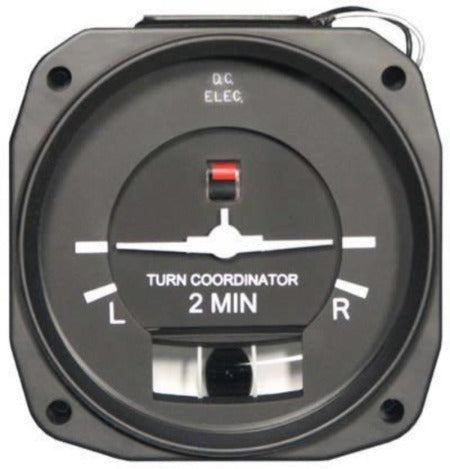

RCA 83A-11 3" Turn Coordinator, Lighted
Part No: RCA 83A-11
DESCRIPTION
RCA 83A-11 3" Turn Coordinator, Lighted
Fine quality instrument by RC Allen and used in many production aircraft. Incorporates an electrical Gyro Turn Indicator with an inclinometer. The inclinometer, by movement of a ball in relation to the lubber lines, indicates the slip angle of aircraft while in a turn. The airplane on the dial rotates with reference to the indices. A power failure flag drops into view whenever the supply voltage is lost or when voltage has dropped below a level acceptable for proper operation of the gyro. Operates on 14 to 28V DC. New manufacture. First installation requires electrical connector and clamp.
- Contains an electrically driven gyroscope
- All volt instrument works from 11 to 30 volts dc
This instrument is used in many production aircraft. It contains an electrically driven gyroscope supported in a gimbal inclined to the horizon so that the instrument senses roll as well as yaw. The RCA82A series is an all volt instrument that works from 11 – 30VDC. The movement is presented by an airplane symbol banking on a fixed horizon with a power warning flag.
Specifications
| Weight | 1.9 lbs |
|---|---|
| Dimensions | 6.20 × 3.4 × 3.4 in |
| Brands |
Specifications
Standard Electric Turn Coordinator. Multi-Volt 11-30VDC.
This instrument is used in many production aircraft. It contains an electrically driven gyroscope supported in a gimbal inclined to the horizon so that the instrument senses roll as well as yaw. The RCA82A series is an all volt instrument that works from 11 – 30VDC. The movement is presented by an airplane symbol banking on a fixed horizon with a power warning flag.
