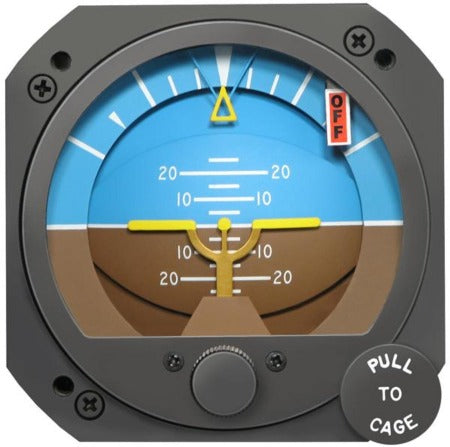

RCA 26EK-11

RCA 26EK-11

The R.C. Allen TSO'd electric horizons and directional gyros have been designed to assure precision performance and long life. The new extended color schemes and spherical display give the pilot a superior presentation. The RCA26 Series is the top of the line and has been designed for precision and reliability. The RCS26EK Series is a 10-30 VDC multi-volt instrument. You have a choice of a fixed or moveable pointer and lighted or non-lighted. Performance characteristics include roll indication of 360°. Pitch ± 30°. Pitch trim range ±7°. Slip Indicator can be added upon request.
Mating connector MS3116E8-4S and panel mounting screws are now included with each unit.

OPERATING TEMPERATURE: -30 TO +50 Degree Celsius

These instruments meet or exceed requirements of TSO C4c and Aeronautical Standard AS396B.
Optional Slip Indicator to satisfy FAA AC91-75 (10-02586).
Made in the USA

• Gyroscopic Attitude Indicator
• Designed as a direct replacement for the RCA26AK (14 volt) and the RCA26BK (28 volt)
• Can be installed on virtually any aircraft regardless of its power system
• Multi-Volt Operation (11 to 30 VDC)
• Multi-Volt integrated lighting
• Fits standard 3" cutout
• Bold color display
• Power failure flag
• Roll indication of 360°, Pitch ±30° Pitch trim range ±7°
• Optional fixed or moveable pointer (see table below)
• Optional lighted or non-lighted version (see table below)
• Optional orange or yellow airplane and pointer (see table below)
• Optional Slip Indicator (P/N 444-0011-01) available which satisfies FAA AC 91-75
• Mating Connector (MS3116E8-4S) & screws included (when sold new)
• Meets or exceeds requirements of TSO-C4c and AS396B
• NOTE: Panel tilt angle is set at the factory and must be specified at time of order
