BENDIXKING

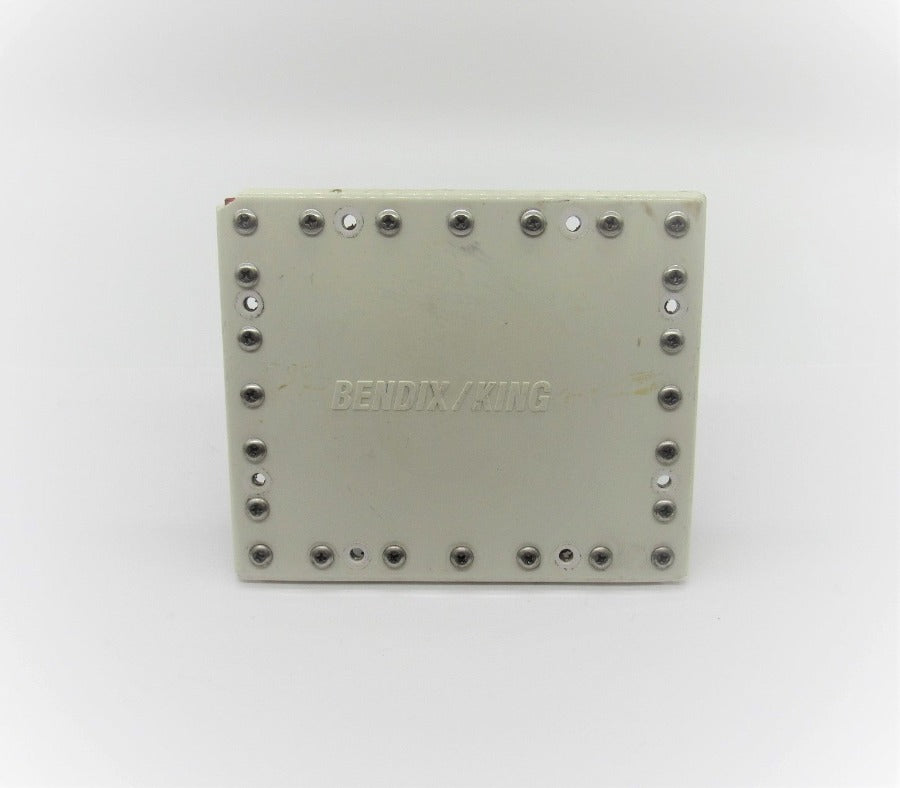

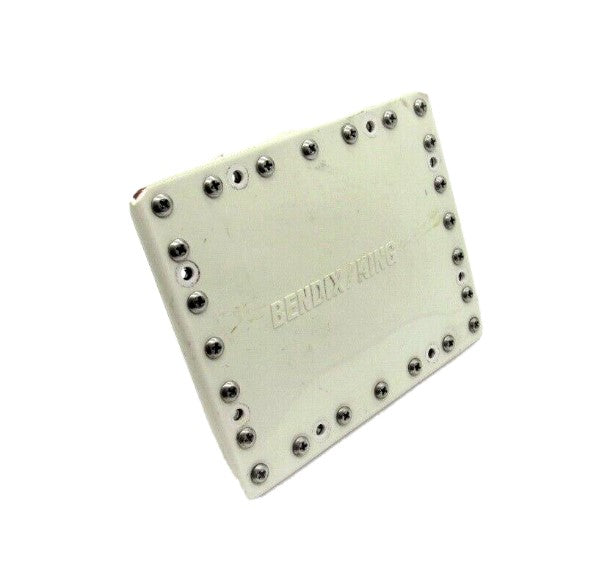

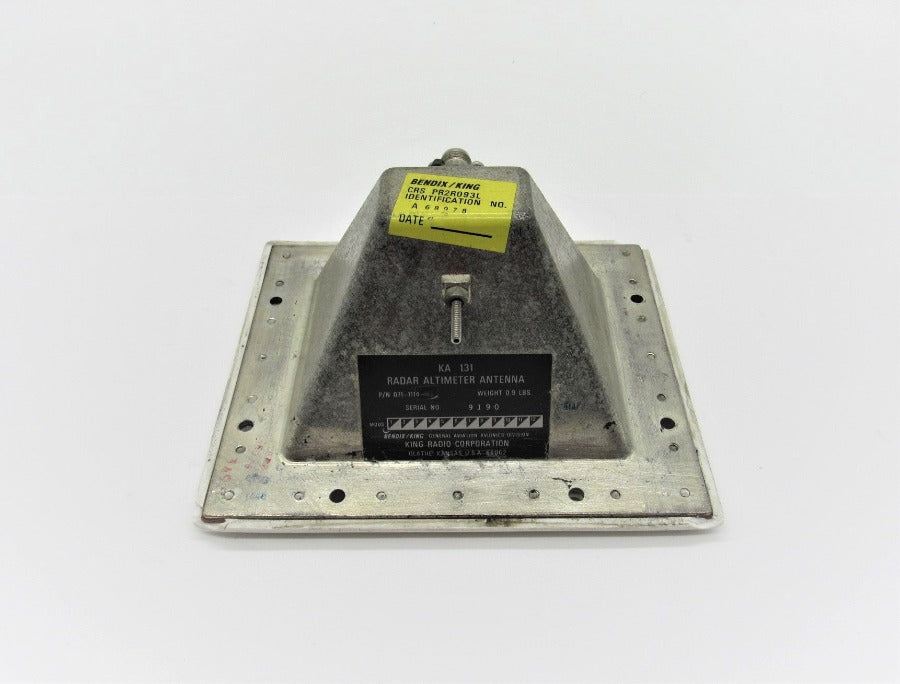

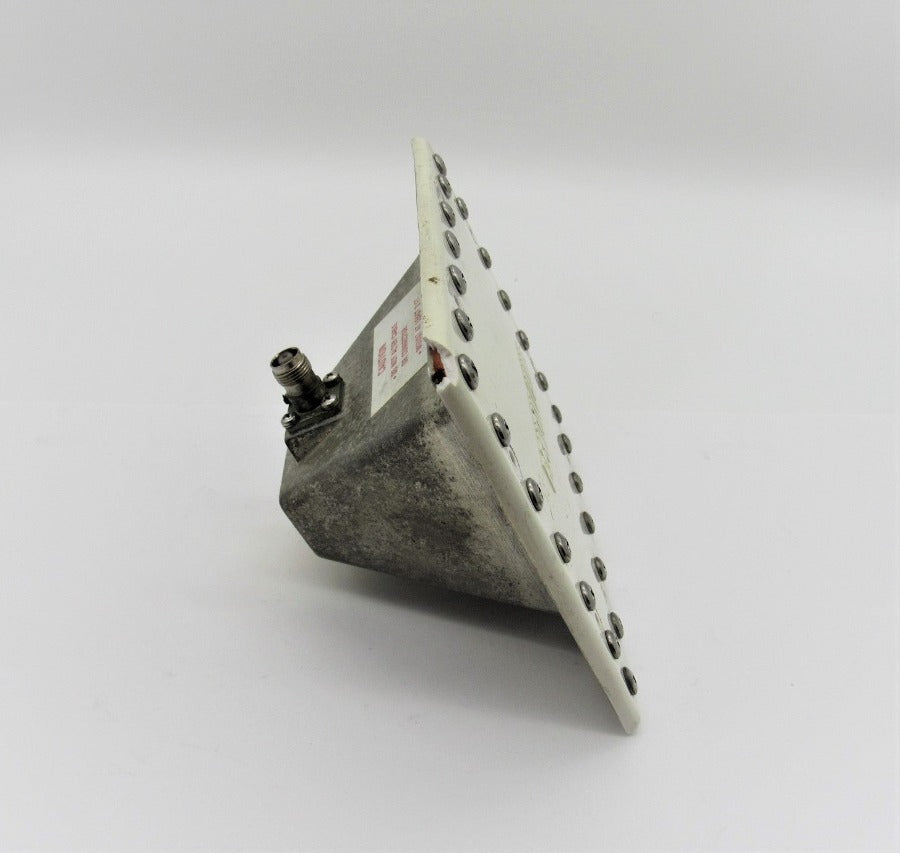

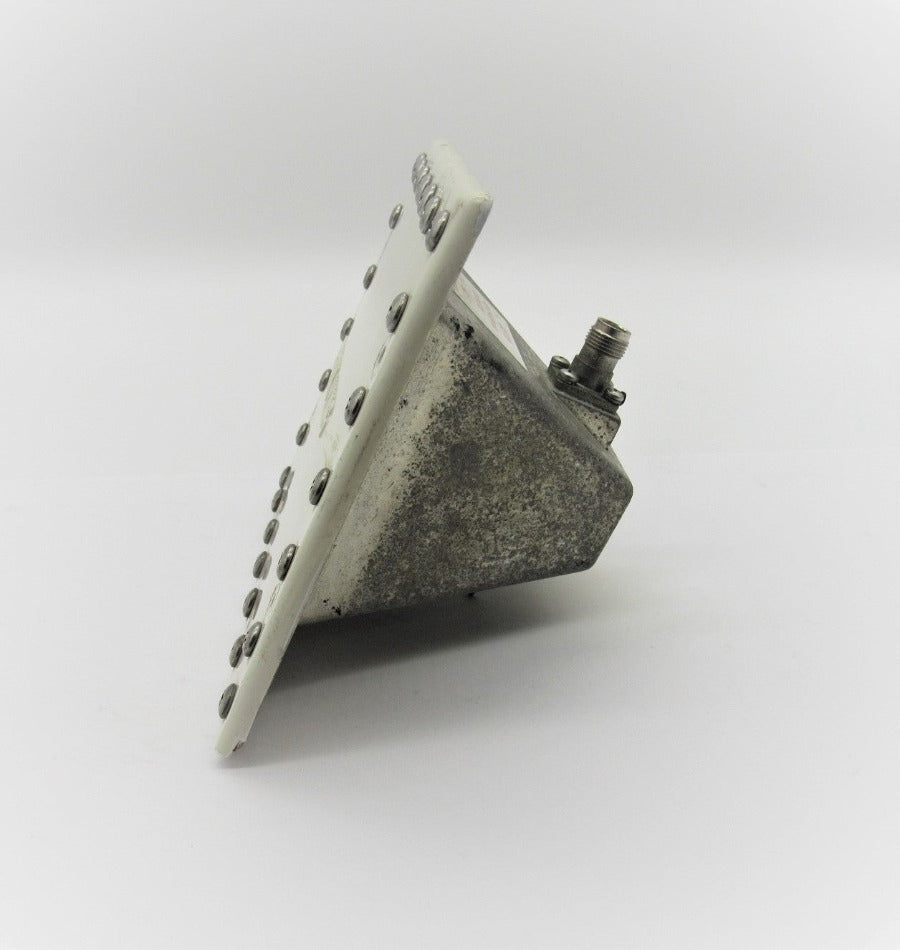

KA-131 Radar Altimeter Antenna (As Removed)
Part No: OH-KA-131 (AR)
$450.00
/
Shipping calculated at checkout.
DESCRIPTION
*Unit is sold "As Removed" and working condition is unknown. No Warranty, Sale is Final.*
FEATURES
- Radar altimeter antenna used in KRA-10/10A Radar Altimeter System
- Available in standard configuration designed to be mounted on a metal surface where front to back angle is parallel with the ground within +/-6 degrees during level flight(see table below)
- Available in skewed configuration designed to be mounted on a metal surface where the front to back angle is parallel with the ground within 6 to 20 degrees during level flight (see table below)
SPECIFICATIONS
| SIZE: | 5.06"W x 2.66"H x 6.06"L | WEIGHT: | 0.9 lbs. |
| ALTITUDE: | 45000 feet | TEMPERATURE: | -55 to +71C |
| BEAMWIDTH: | E-Plane= 40 +-5 deg. ; H-Plane= 40 +-5 deg. | SIDE LOBE: | 20dB down |
| GAIN ABOVE ISOTROPIC: | 10.5dB minimum | POLARIZATION: | Linear |
| INPUT IMPEDANCE: | 50 ohm nominal | SKEW: | 0-6 deg. (-00 unit); 6-20 deg. (-01 unit) |
