GARMIN
Garmin GTR 205 COMM Radio
Part No: 010-02480-01
$100 Mail-In Rebate! See Rebate tab below for details!
Regular Price: $2,425.00
/
Shipping calculated at checkout.
DESCRIPTION
Garmin GTR 205 COMM Radio
Adding advanced communication capabilities to any panel, the GTR 205 is an optimized and cost-effective solution. The 2,280-channel capable VHF COMM radio comes standard with 10 watts of power, and a 16 watt option is also available. For operators requiring NVIS compatibility, there is an option for that as well. Additionally, pilots can monitor a standby COMM frequency while tuned to the active frequency, allowing them to perform various tasks such as listening to ATIS transmissions without leaving the active ATC frequency.
The worldwide frequency database makes it convenient to find frequencies by searching an airport identifier. Frequency memory and instant recall make tuning to the most often or recently used frequencies quick and efficient, plus holding down the volume knob will quick-tune to the emergency channel 121.5. To assist with approaches, holds or other assigned maneuvers, the GTR 205 includes a built-in timer, with the option to count up or count down.
MEET YOUR NAV/COMM NEEDS — AND MORE
Upgrade your COMM radio with the modern, cost-effective slimline GTR 205 radio, and add advanced communication capabilities to your panel.
- Small panel? The slim 1.3” height fits your aircraft with ease.

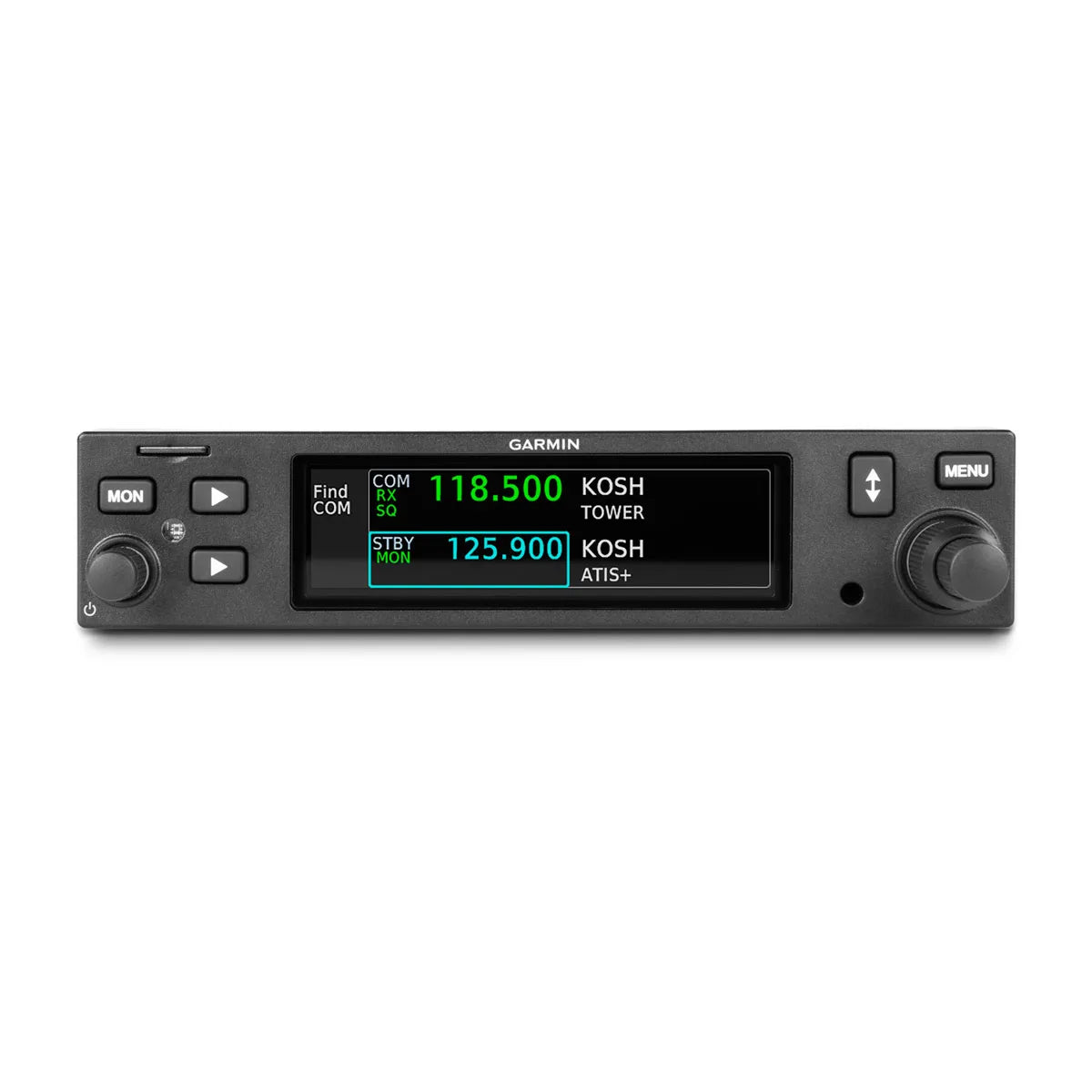

- See your frequencies clearly on a large, bright, full-color LCD display.
- It’s easy to use, with a familiar, intuitive interface.
- Find your navaid or facility frequency with the worldwide database.
- Monitor your standby COMM frequency.
-Quickly tune to the 121.5 emergency frequency with a single touch.
VHF COMM TRANSCEIVER
The 2,280-channel capable VHF COMM radio offers standard 10 watts (or optional 16 watts with enablement) of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing and automatic or manual squelch. Swap your active and standby frequencies with a single touch of a button.
FIND A FREQUENCY
Enter an airport identifier, and let the GNC 215 radio look up frequencies for that location (tower, ground, ATIS, clearance delivery, etc.) from its worldwide database. Then send the selected frequency to the standby position.
FREQUENCY ID
Pair with your compatible GPS source to enable frequency ID and show your tuned frequency’s identifier and type, including tower, ATIS, center and more. So you always know who you’re talking to.
STANDBY COMM MONITORING
Listen to a standby frequency, such as ATIS, without leaving your active channel.
INSTANT RECALL
With frequency memory and recall, you can quickly tune your most frequently or recently used frequencies. Plus, holding down the volume knob will dial up the 121.5 emergency frequency.
BUILT-IN TIMER
Use the built-in timer to assist with approaches, holds and other assigned maneuvers — with the option to count up or count down.
NVG COMPATIBLE
For demanding night missions, GNC 215 is available with an optional NVIS enablement.
REMOTE TUNING
Pair the GNC 215 radio with your G3X Touch™ flight display, and remotely tune your radio via your flight display touchscreen.
Features
Performance:
Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts (16 watts with optional enablement)
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C
Certifications: TSO C169a (transmitting and receiving), TSO C128a (stuck mic)
Physical:
Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors
Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors
In the Box:
- GTR 205
- Installation rack
- Backplate kit
- Pilot's Guide
Package contents may vary per version. See your local dealer for more information.
Rebate
Garmin Pilot's Choice Rebate
October 1, 2024 through December 20, 2024
Click Here for More Information
Been waiting to upgrade your panel? Now's the time to get the avionics you've been wanting with the Pilot's Choice Rebate from Garmin. Available through December 20, 2024, Garmin is pleased to offer rebates up to $450 each on a variety of our EIS systems, radios, audio panels, and GPS Navigators including the GNX 375 GPS/transponder. Must mail-in rebate form to redeem.
