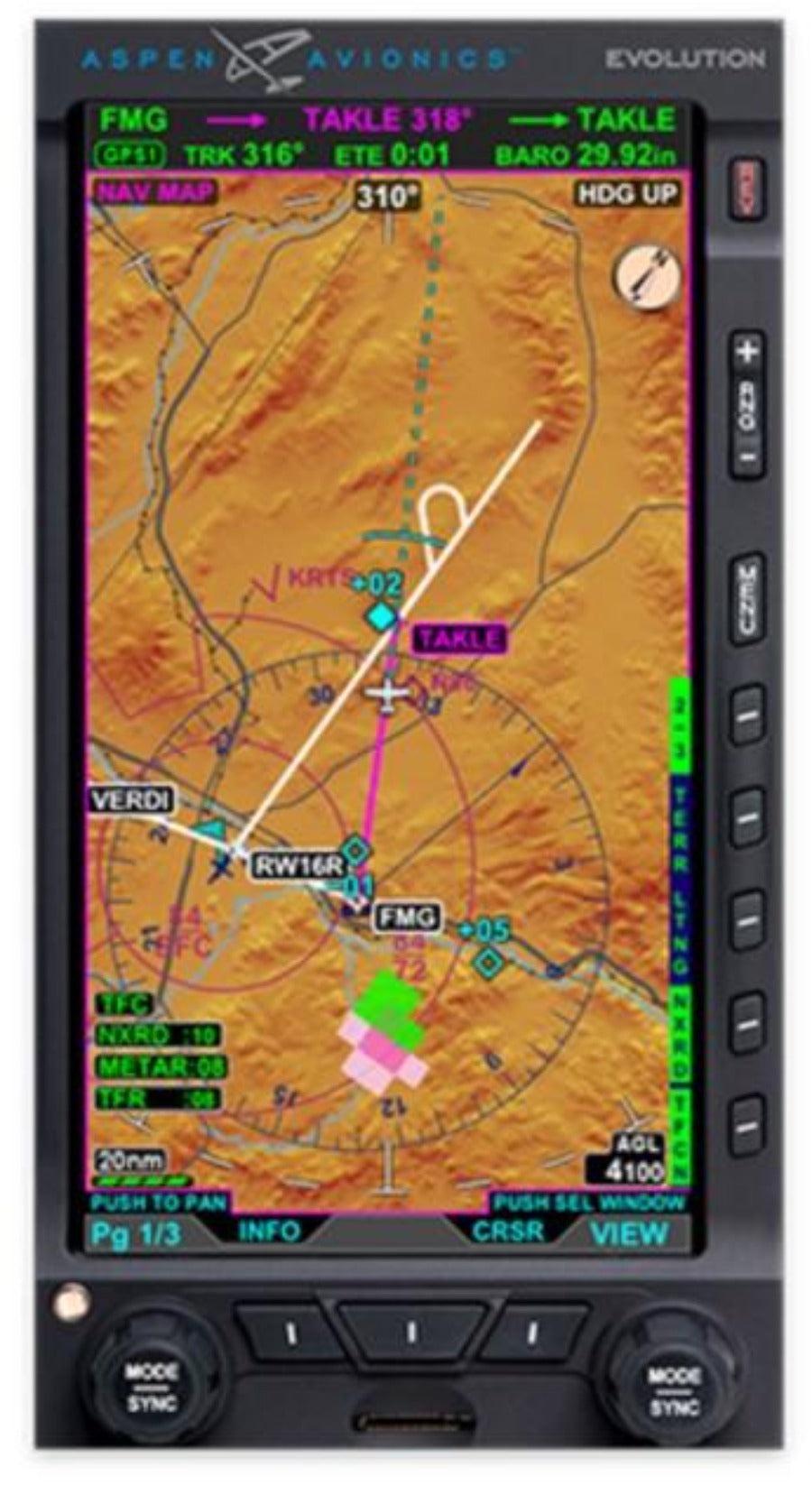

Evolution 500 MFD MAX

Expand your Glass to MAX

The Evolution 500 MFD (Multi-function Display) MAX provides the same great MFD features as the 1000 MFD MAX at a lower price by eliminating the duplicate sensor set and the ability to serve as a primary flight display backup. It's a perfect solution for the pilot who wants a more affordable glass panel expansion. It's the perfect combination when considering adding that second (or third) display to round out out your glass cockpit six-pack replacement.

Engineered for Easy Installation

The Evolution flight displays are innovative, modular system components that slide into existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting. The system can optionally be flush mounted. This unique design dramatically reduces installation time and cost.

The modular Evolution platform allows for easy expansion. The integrated displays mount side-by-side in one, two, and three display configurations for supreme flexibility and upgradability.

• Vibrant colors with the latest aviation glass
• Higher reliability and faster refresh rates with the lates generation processors
• Chart and countdown timers
• Height above ground level (AGL) on navigation map and terrain maps
• METAR flags on navigation maps
• Section-style moving maps with hazard awareness overlays
• Customizable screen layouts
• Built-in backup battery
• Charts and geo-referenced airport diagrams
• Weather
• WX500 Stormscope interface
• Datalink weather

General Specifications:

Overall Dimensions:   3.50” W x 7.00”H x 4.15”D
Weight:   2.9 lbs. with mounting bracket
Display Type:   6.0” Diagonal TFT Active Matrix LCD
Display Resolution:   400x760
Display Backlight:   High Intensity White LED
Display Colors:   16M

Operational Specifications:

Operating Temp:   -20°C to +55°C
Storage Temp:   -55°C to +85°C
Max Operating Altitude: (unpress.)   35,000 ft.
Cooling:   Integral Fan
Max Humidity:   95% at 50°C
Input Voltage:   +8 to +32 Volts DC
Max Current:   2.4 Amps @ 28 Vdc  /  4.8 Amps @ 14 Vdc

I/O Specifications:

ARINC 429 Inputs:   5 Low Speed
ARINC 429 Outputs:   1 Low Speed
RS-232 Inputs:   5
RS-232 Outputs:   3
Pitot / Static:   Quick Connect

Certification Specifications:

FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

Software
RTCA DO-178B Level C

Environmental
RTCA DO-160E
