COMANT
DESCRIPTION

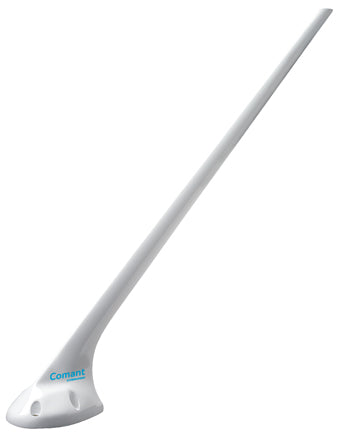

CI 248-5 Comdat VHF Antenna / 118-137 MHz
The CI 248-5 is designed for Cessna's 182 and 182T aircraft. The low-drag sleek design of the CI-248-5 has been credited with adding 2 to 3 Knots on certain aircraft. The CI-248-5 was tested to some of the most rigorous requirements outlined in RCTA DO-160D. Rated for most high powered twins, the antenna is also certified for helicopter applications. The CI 248-5 has a built-in notch filter that allows the antenna to be placed in close proximity to GPS antennas without interference issues.
Specifications
Weight:
0.52 lb
Height:
17 in
Frequency:
118-137 MHz
VSWR:
2.5:1 maximum
Polarization:
Vertical
Radiation pattern:
Omnidirectional
Impedance (RF):
50 ohms
Power (RF):
25 watts
Temperature:
-55ºC to +85ºC
Altitude:
50,000 ft
Certifications:
FAA TSO C37d, C38d
