REVERE SURVIVAL INC.
DESCRIPTION

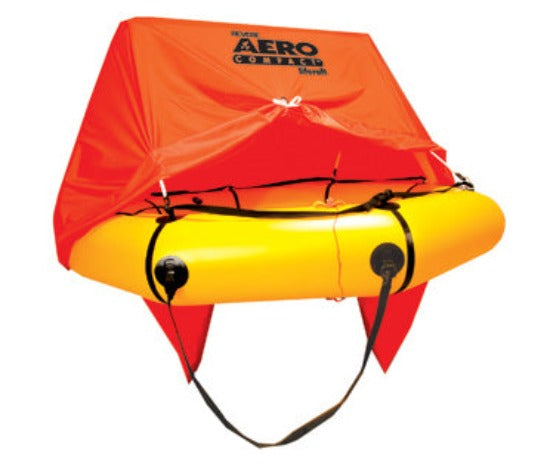

Aero Compact 4 Man Liferaft w/Canopy
Our lightest and most compact liferaft...ever! This emergency raft is ideal for general aircraft safety and survival. The Aero Compact series offers an enhanced level of safety for over-water flights. With double 200 lb. ballast pockets, the Aero Compact enhances stability in the roughest of sea conditions. Its lightweight allows for easy deployment, and the compact size makes stowage easy, even in the smallest of spaces.
Ideal for general aircraft, the compact and lightweight Aero Compact™ offers an enhanced level of safety for over-water flights. With double 200 lb. SuperRev ballast pockets, the Aero Compact enhances stability in the roughest of sea conditions. Its light weight allows for easy deployment, and the compact size makes stowage easy even in the smallest of spaces. 5-Year Limited Warranty on all Revere Aero Compacts™ Valid only with:
• Required initial service 2 years after purchase; Annual service intervals thereafter
• Service performed by Revere Survival Inc.- certified service stations
• Proper installation and use in accordance with Revere Owner’s Manual
• Warranty registration
Features
- Bridges the gap between the lifejacket and the full feature liferaft
- Smallest, lightest and least expensive raft available today
- Double 200 lb. weighted SuperRev™ Ballast Pockets for stability
- Raft inflates automatically in less than 30 seconds with selfcontained CO2 inflation system
- Single tube, single compartment construction
- Tube and floor fabric: polyurethane coated nylon fabric
- RF welded and adhesive bonded tape seams
- Valise: Durable weather and UVresistant vinyl-coated polyester with optional, detachable equipment pack/kit • Pressure Relief Valve
Specifications
Weight and Dimensions without kits:
| Product | Aero Compact 2 Person | Aero Compact 2 Person w/ Canopy | Aero Compact 4 Person | Aero Compact 4 Person w/ Canopy |
| Part No | 45-AC2V | 45-AC2VP | 45-AC4V | 45-AC4VP |
| Packed Dimensions LxWxH” (mm) | 14 x 9 x 5 (356 x 229 x 127) | 14 x 9 x 6 (356 x 229 x 152) | 14 x 11 x 5 (356 x 280 x 127) | 14 x 11 x 5 (356 x 280 x 127) |
| Packed Weight lbs. (kg) | 13 (6) | 15.5 (7) | 15.5 (7) | 18 (8.2) |
| Floor sq. foot (sq. meter)/person | 3.8 (.35) | 3.8 (.35) | 3.6 (.33) | 3.6 (.33) |
Weights and dimensions (with Equipment Pack):
| Product | Aero Compact 4 Person w/ Canopy & Standard Kit | Aero Compact 4 Person w/ Canopy & Standard Plus Kit | Aero Compact 4 Person w/ Canopy & Deluxe Kit |
| Part No | 45-AC4V-K | 45-AC4V-K2 | 45-AC4V-K3 |
| Packed Dimensions LxWxH” (mm) | 14 x 11 x 8 (356 x 280 x 203) | 14 x 11 x 8 (356 x 280 x 203) | 14 x 11 x 8 (356 x 280 x 203) |
| Packed Weight lbs. (kg) | 20 (9) | 22 (10) | 24.5 (11) |
| Floor sq. foot (sq. meter)/person | 3.6 (.33) | 3.6 (.33) | 3.6 (.33) |
