WHELEN

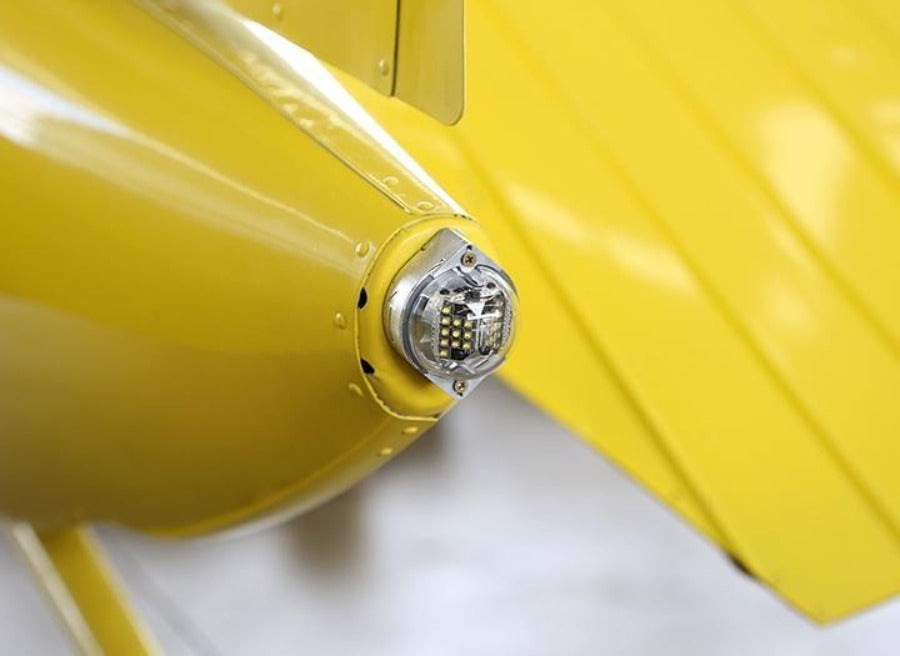

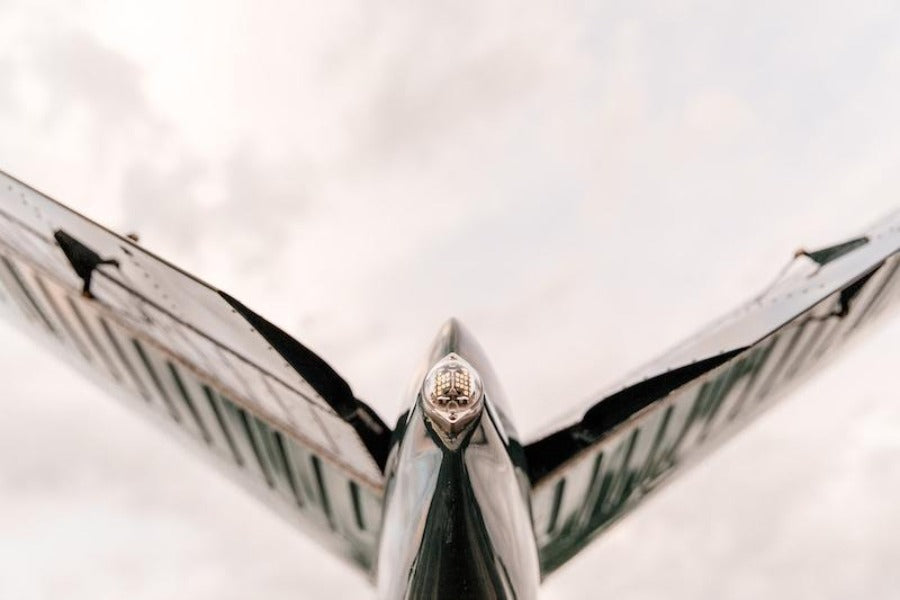

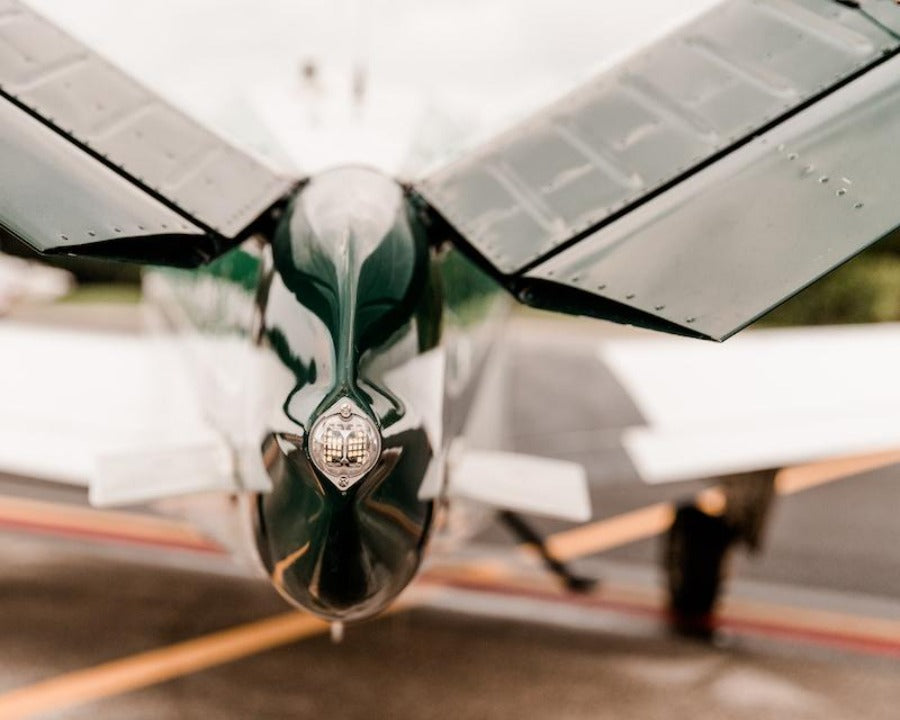

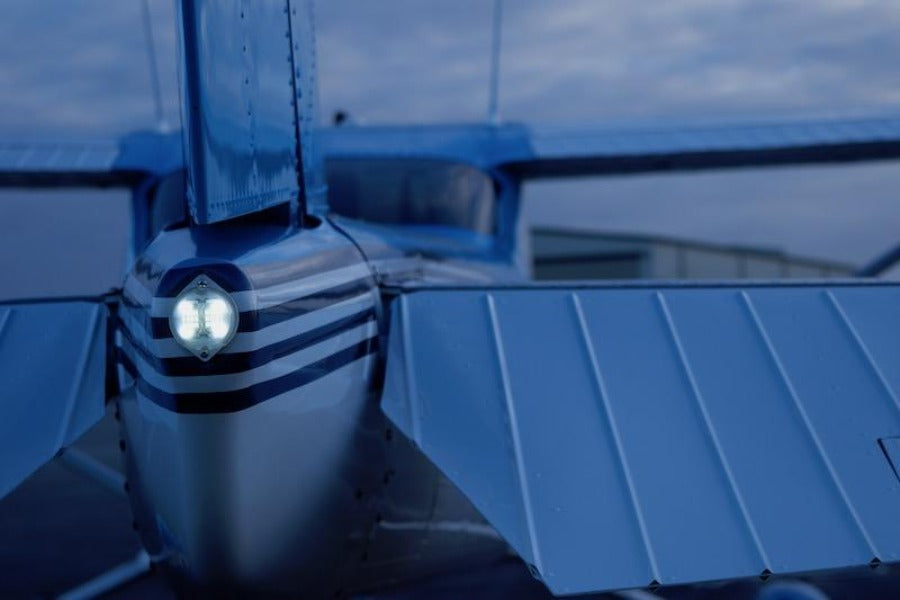

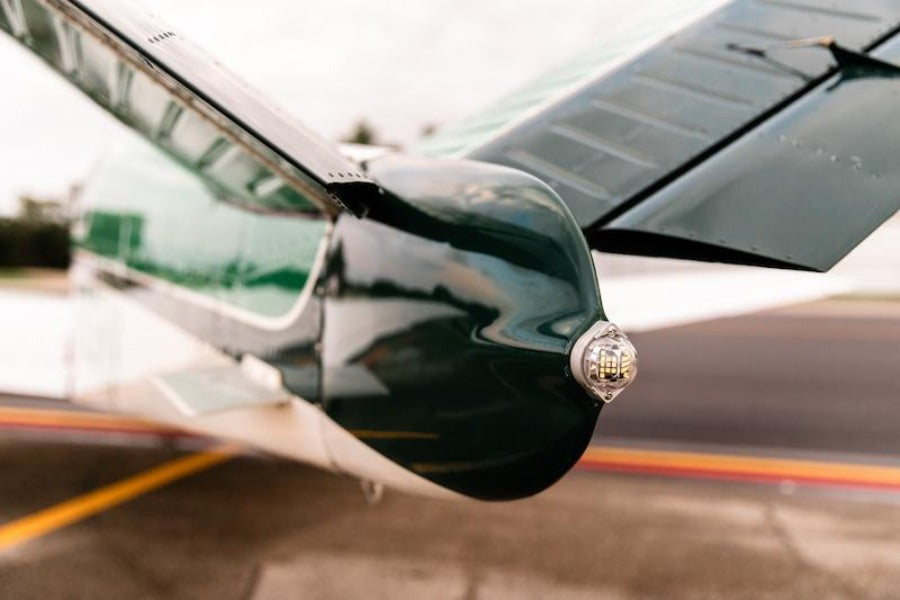

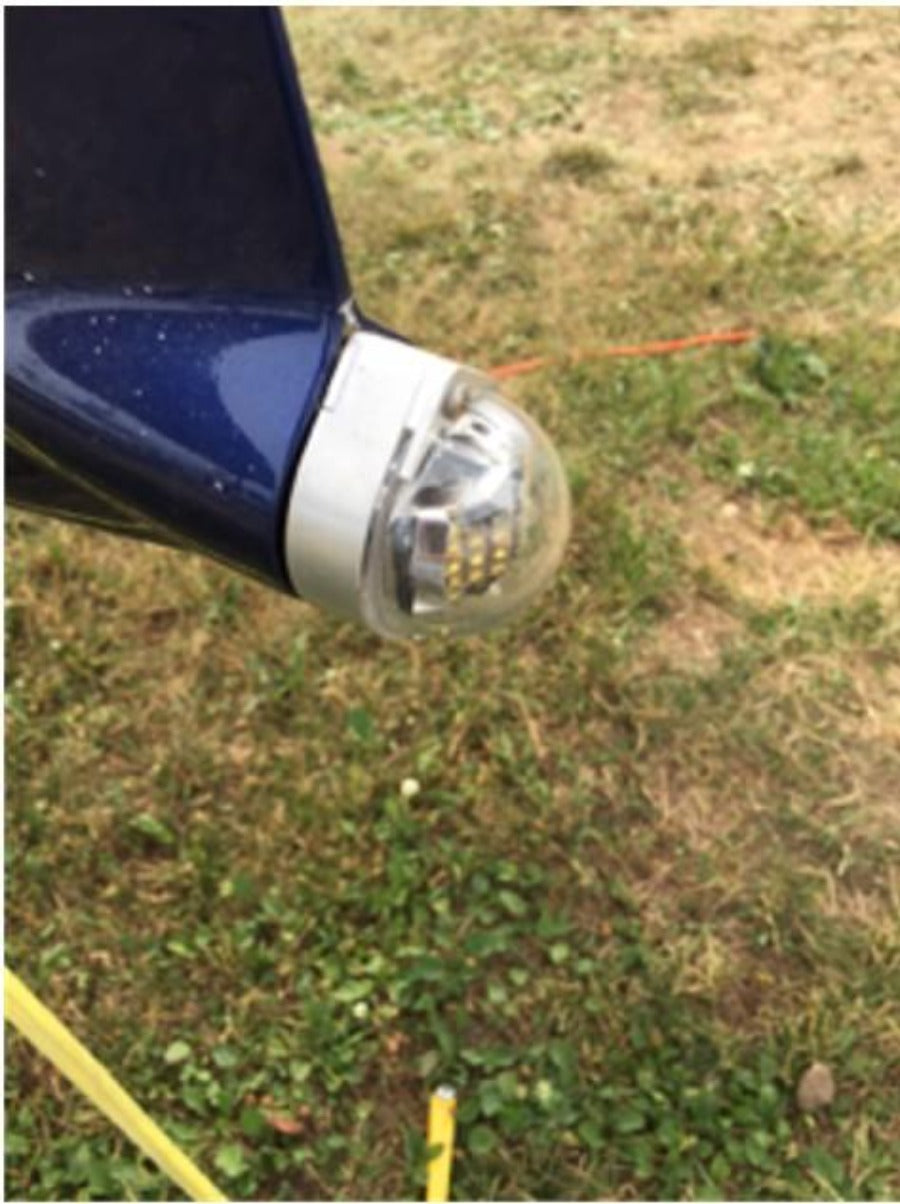

Orion 500 Series Position / Anti-Collision Tail Lights

Part No: 01-0771774V01

$475.00
Shipping calculated at checkout.
Voltage: 14V, White
DESCRIPTION

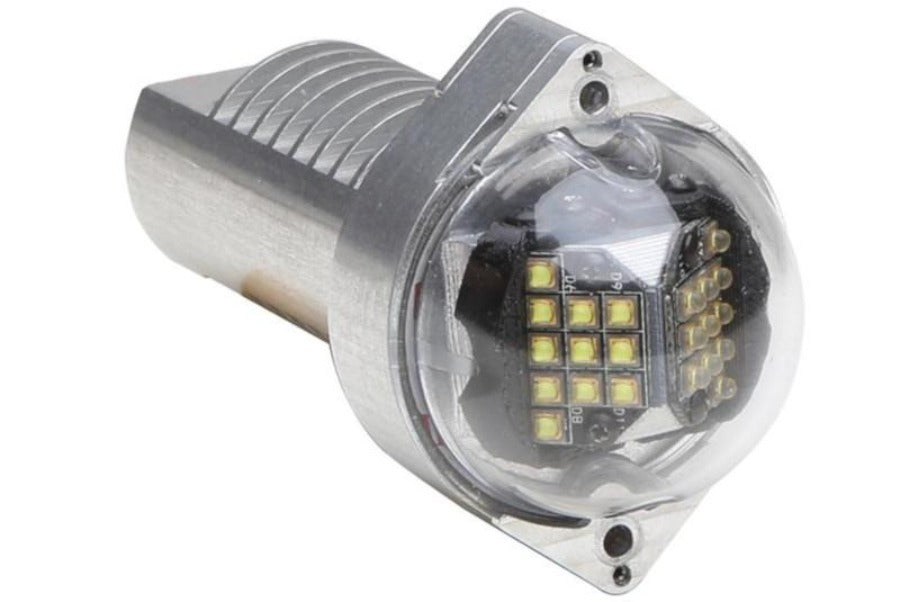

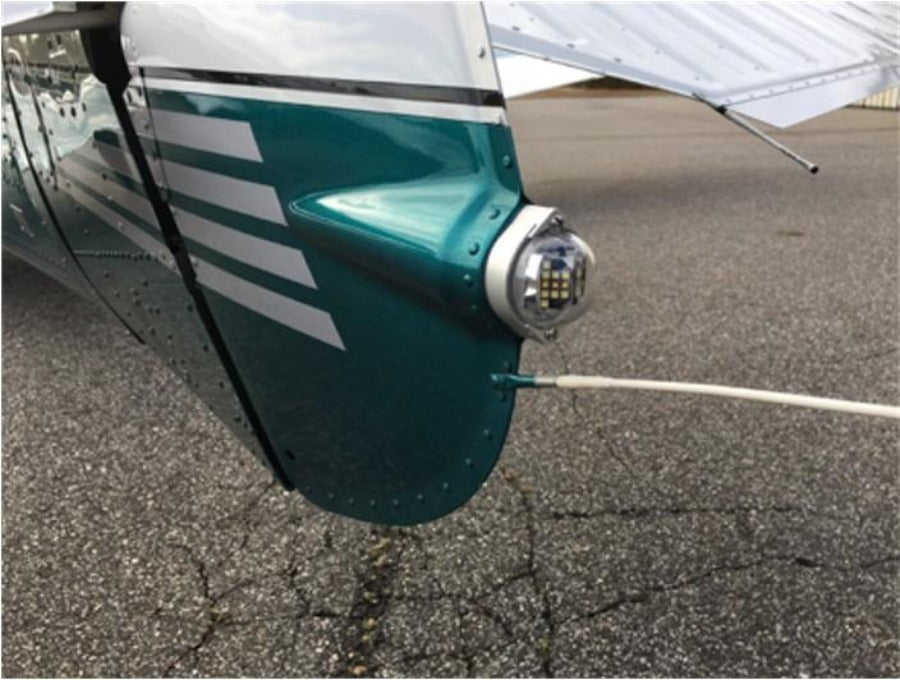

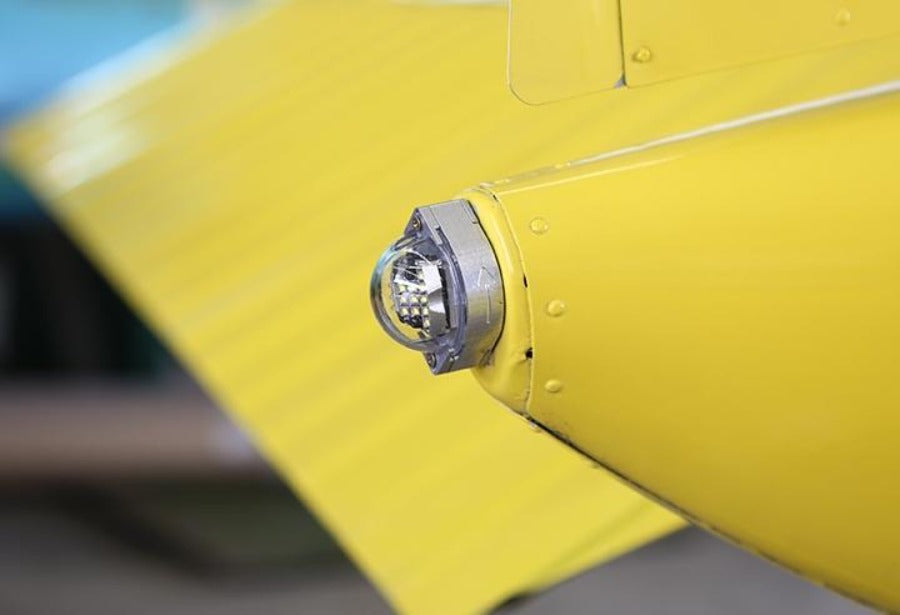

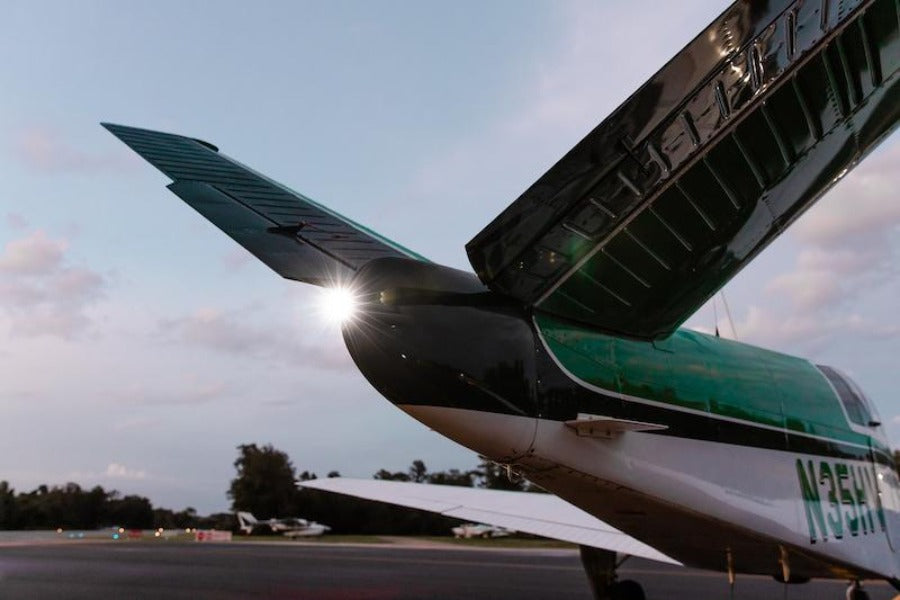

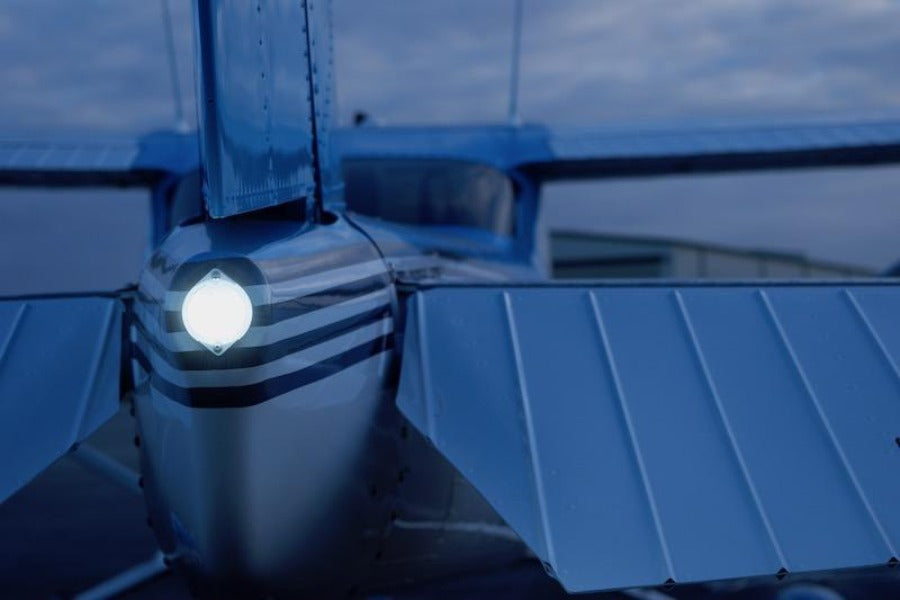

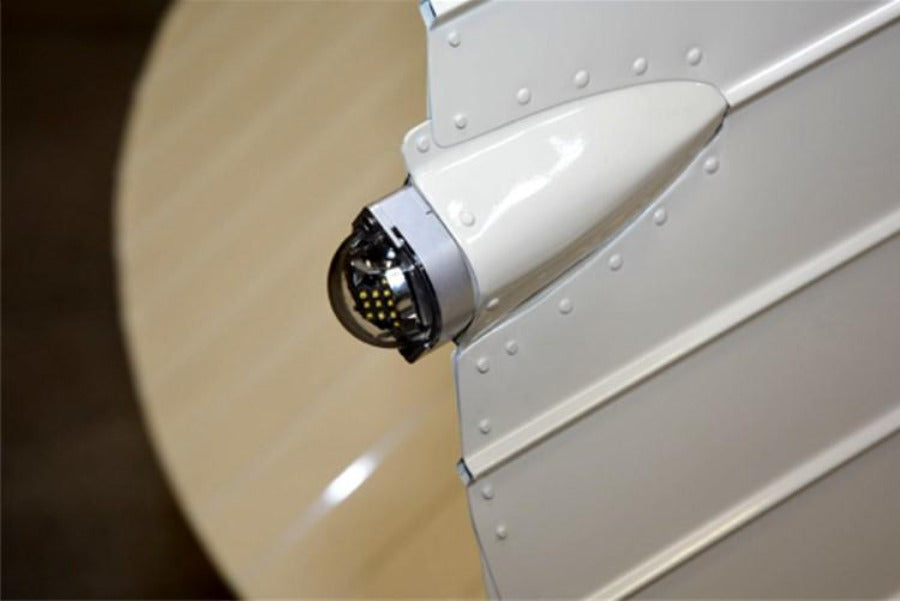

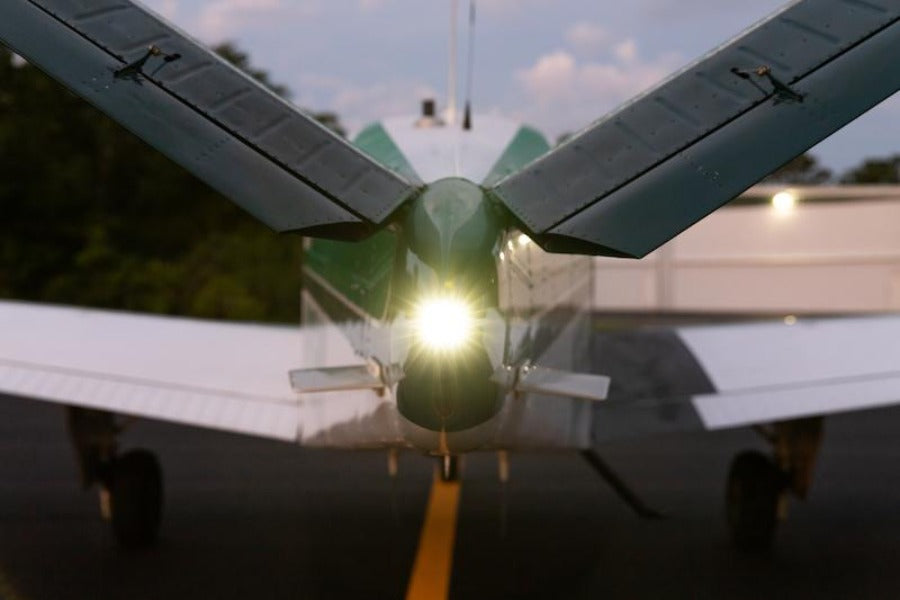

Whelen Orion 500 Series Aircraft Position Lights

The Orion™ 500 Series products incorporate both the WHITE flashing Anti-Collision light, and the Tail Position light functions. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation.

Whelen LED Aircraft Nav Lights Footprint

The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO and STC approved.

Aircraft Position Lights Information

  • Drawing 71774
  • Weight 0.28 lbs.
  • Current Draw 14V / 28V 0.20 / 0.10 Amp (Position) 3.8 / 1.9 Amp (Anti-Collision) Average
  • Lenses Clear Hardcoated Polycarbonate

Plane Wing Lights Certifications

OR5001V - 01-0771774V01 - White Tail Position / Anti-Collision Light Assembly, 14 VDC

FAA TSO-C96a Class II / TSO-C30c Type III / STC

OR5002V - 01-0771774V02 - White Tail Position / Anti-Collision Light Assembly, 28VDC

FAA TSO-C96a Class II / TSO-C30c Type III / STC

Orion 500 Aircraft Position Lights
