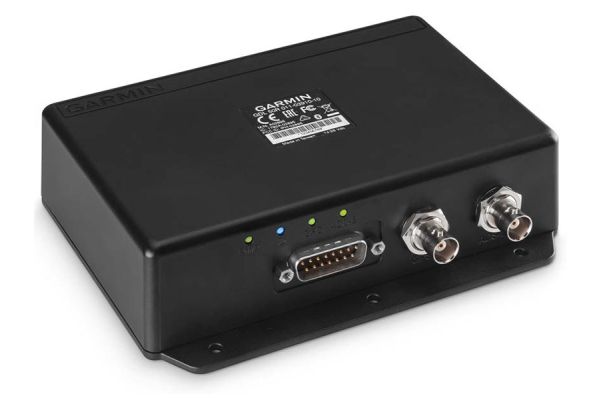

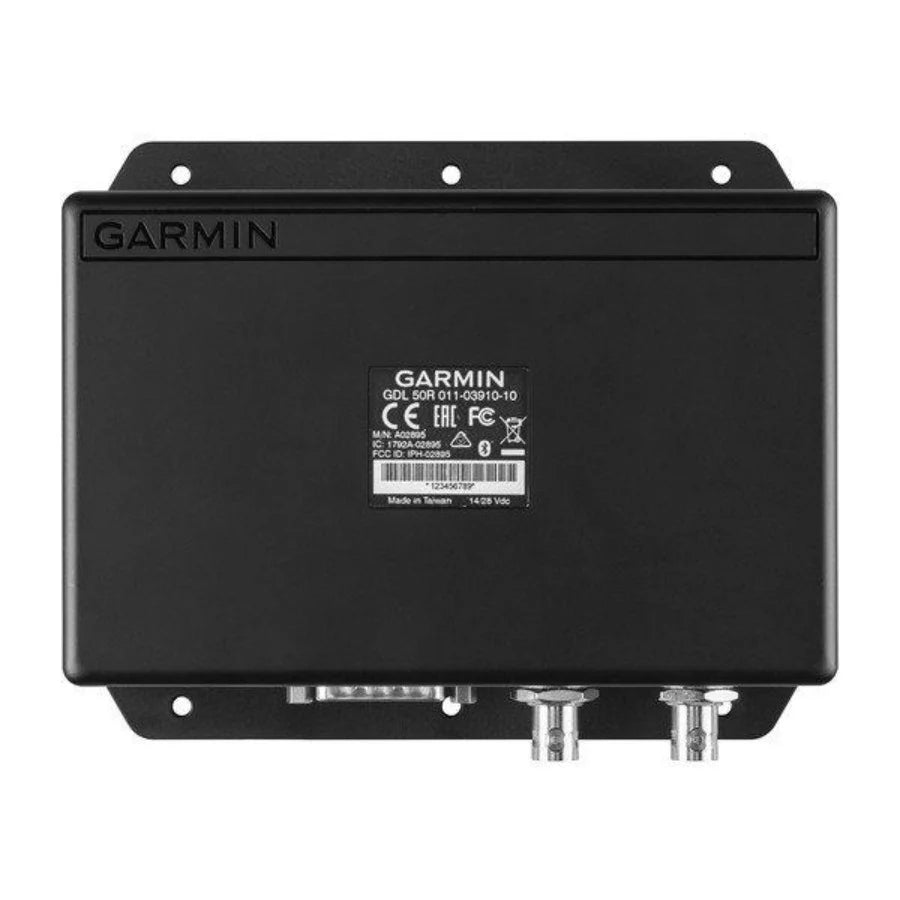

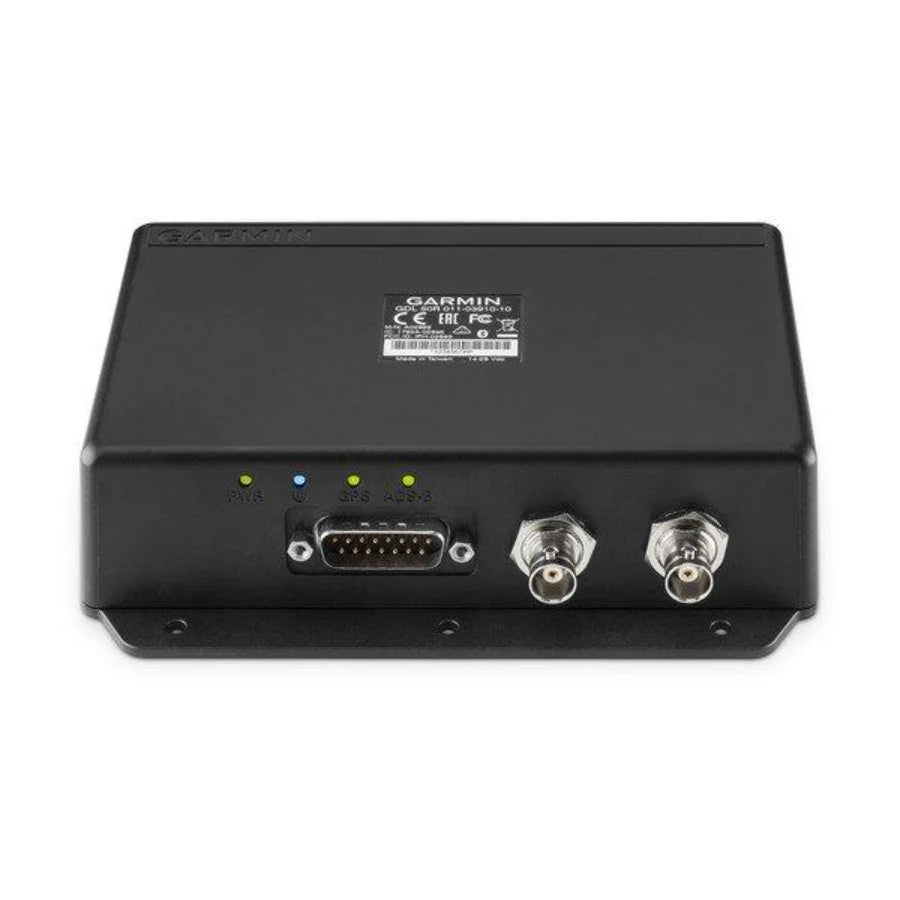

GDL 50R Remote Mount for Garmin G3X

GDL 50R Remote Mount for Garmin G3X

A successor to GDL 39 3D, the GDL 50 combines dual-link ADS-B traffic, a wide range of Flight Information Service-Broadcast (FIS-B) weather products, GPS and backup aircraft attitude information that displays via Bluetooth® wireless technology on iPAD and Android devices, as well as other Garmin portable GPS products such as Aera-660, Aera-795, or the Aera-796.

Garmin GDL ADS-B Receiver Compatibility

FIS-B weather products received by GDL 50 include:

• NEXRAD imagery
• METAR
• TAFs
• wind, and temperatures aloft
• PIREPs
• NOTAMs

Additionally, pilots also have access to the most recent data as GDL 50 continually downloads traffic and weather information in the background — even while the display device is sleeping.

Dual Link Technology

In addition to comprehensive weather data, pilots utilizing GDL 50 can receive ADS-B traffic information and audible alerts to easily identify potential traffic conflicts while in-flight. Dual-link technology allows the GDL 50 to receive ADS-B “In” traffic on both 978 MHz and 1090 MHz frequencies, offering the most complete traffic picture and superior situational awareness.

For aircraft that are properly equipped to meet ADS-B “Out” with a certified solution, the portable GDL 50 ADS-B “In” receiver provides an even better traffic picture by also receiving TIS-B traffic data from ground stations.

Traffic and Weather, Moving Map, and TargetTrend

Exclusive to Garmin ADS-B receivers, the patented TargetTrend™ technology provides a more intuitive method of judging traffic trajectories and closure rates, particularly in airspace with high volumes of traffic. So, pilots can more easily discern traffic targets that pose the greatest threat.

TerminalTraffic™ technology displays a comprehensive picture of ADS-B-equipped aircraft and ground vehicles throughout the airport environment on the moving map and SafeTaxi® airport diagram. ADS-B traffic can be overlaid on the dedicated traffic page, the moving map, and IFR/VFR charts on compatible devices.

GDL 50 Battery Life

Boasting superior battery life, a built-in rechargeable lithium-ion battery allows GDL 50 to receive ADS-B traffic, FIS-B weather, GPS, and backup aircraft attitude information for up to 8 hours on a single charge. On applicable devices, backup attitude information can be displayed within the SVX™ synthetic vision feature or the aircraft panel pages for use in VFR conditions.

Capable of wirelessly streaming data to two devices and making hardwired connections to two additional devices simultaneously, GDL 50 offers quick and convenient access to essential information throughout the cockpit.

GDL 50 For Sale From A Certified Avionics Dealer and Repairer

Looking for an upgrade? Check out our Garmin avionics packages.

Speak with an expert toll-free at 800-474-9714 for recommendations on your aircraft today!
