BOM (Broadcasting Outer Module)

BOM (Broadcasting Outer Module)

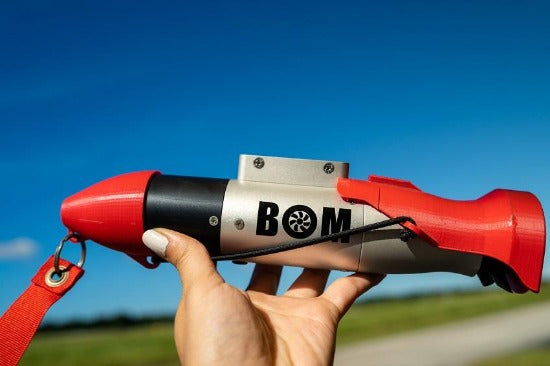

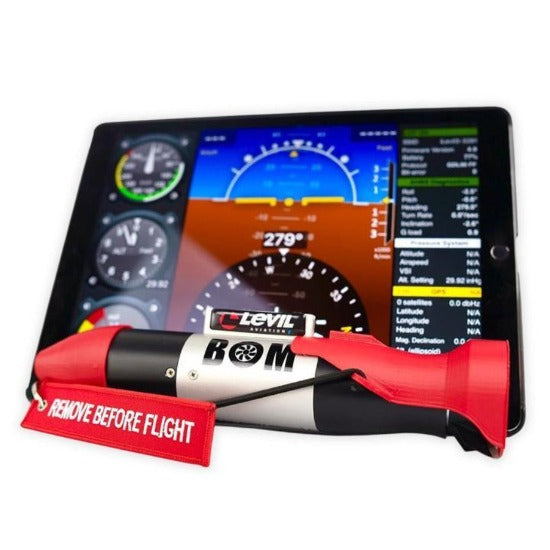

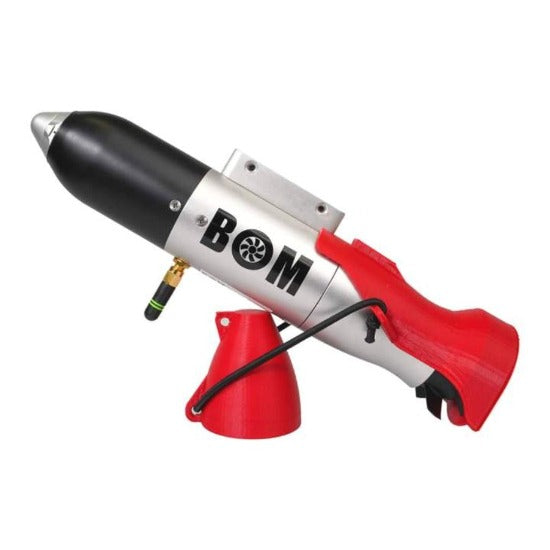

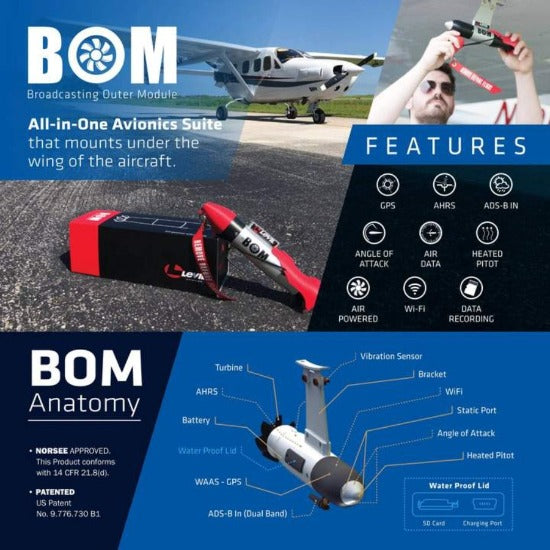

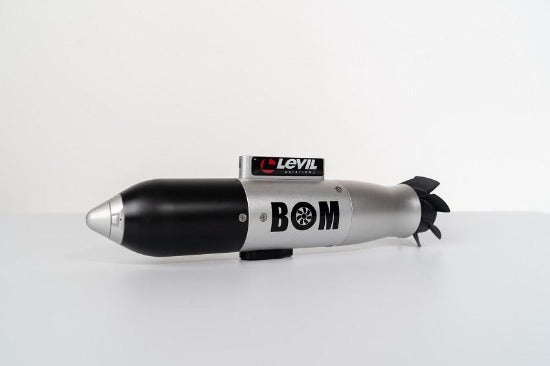

The BOM is your ideal back-up solution! This wireless aerodynamic pod that mounts underneath the wing of your aircraft measures angle of attack, indicated airspeed, WAAS GPS, AHRS, ADS-B in, and data recording. It provides an affordable solution that gives you the peace of mind to safely overcome any instrument malfunction or related emergency. It's also an affordable way to modernize a vintage aircraft without using a single wire!

• Angle of Attack (AOA)
• Heated Pitot Static for indicated airspeed
• WAAS GPS
• High-performance AHRS and solid-state technology
• ADS-B In Receiver for weather and traffic
• Self-powered and self-charging system
• Wireless Platform offering iOS/Android compatibility
• Automatically power on/off with the vibration of the engine
• Small and lightweight
• Records flight data with SD card

Included in the Package

• Wireless Broadcasting Outer Module unit

• USB to mini USB cable

• Mounting Brackets

• Bracket screws

• Protector case with magnetic switch

• Remove Before Flight flag

• NORSEE papers

• Micro SD card

Weight:
0.8 lb

Dimensions:
10 x 3.7 x 1.8 in.

Force produced:
0.175 lbs of force at 100 knots
0.7 Lbs of force at 200 knots

Material:
Delrin and anodized aluminum

Battery:
Internal Li-Ion

Minimum speed:
32 knots

Maximum speed:
210 knots

Charging:
100-210 knots
