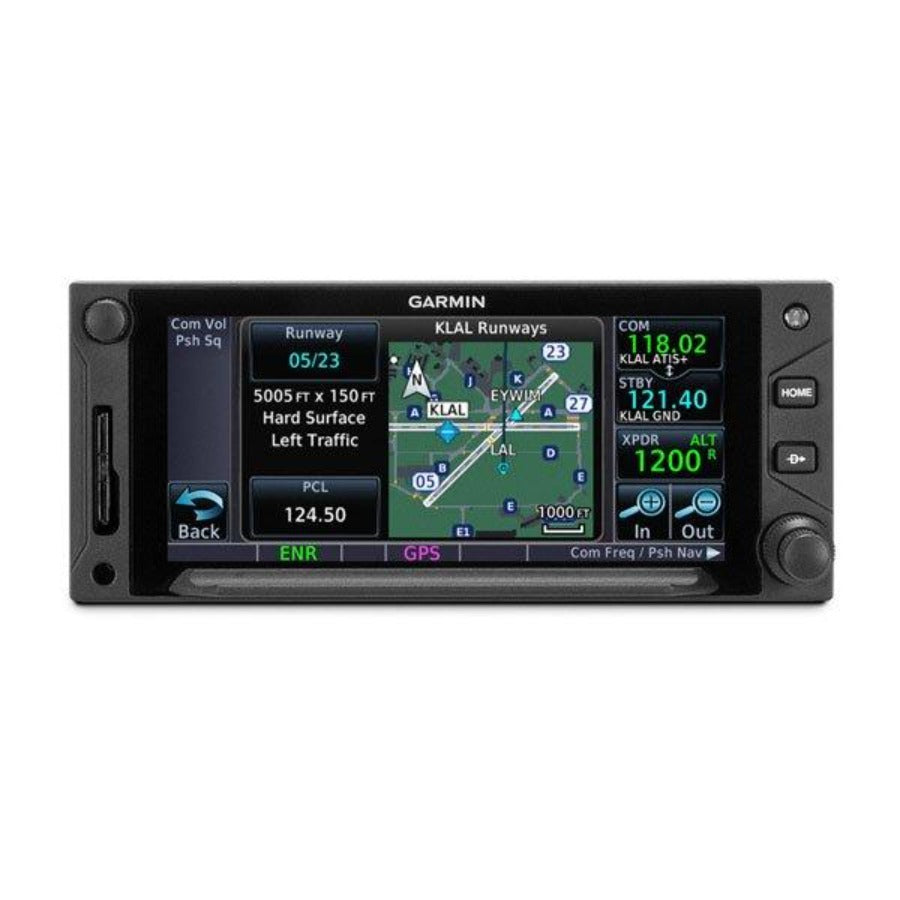

Garmin GTN 650Xi GPS/NAV/COMM/MFD for Experimental Aircraft

Garmin GTN 650Xi For Experimental Aircraft

GPS/NAV/COMM/MFD

• • Visualize your entire flight plan, including holds and approaches on a 4.9” touch display.
  • Faster is better. High-speed processors cut boot-up time by 50% over earlier GTN models.
  • Fly the approaches you want — from visual glidepaths to LPV, RNAV, ILS and more.
  • It’s interface-friendly with a wide range of existing avionics, autopilots and flight displays.
  • Wirelessly load flight plans and database updates with an optional Connext^® link
  • Upgrade? New GTN Xi series offers easy slide-in upgrade for existing GTN avionics.

  Do-It-All Touchscreen

  Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.

  Lightning-Fast Response


  Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.

  High-Resolution Display


  With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.

  Multifunction Display


  Supporting multiple inputs, the 4.9” display can put moving maps, terrain, traffic², weather², airport diagrams and more at your fingertips.

  Easy Data Entry


  Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.

  Remote Radio Control


  In dual GTN Xi installations, remote tuning capability lets you tune frequencies on both units from either navigator. A Radios page displays all selectable Comm and Nav frequencies (active and standby) plus their volume levels.

  See the Full Picture


  Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more.

  Direct Connect


  A Direct-to key on the bezel lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.

  Upgrade to the Garmin GTN 650Xi

  Call us at 800-474-9714 to speak with an expert!

• Nav/Comm with VOR/localizer and glideslope receiver
• 10W transmitter output (16W version available, see GNC-255B)
• 25 kHz frequency channel spacing and 8.33 kHz channel spacing to meet the impeding Single European Sky mandate (European operaters by 2018)
• Built-in VOR/Localizer converter
• Database lookup of frequencies using navaid ID
• VOR receiver displays to/from and radial
• Digitally decoded OBS setting
• Sunlight readable full alphanumeric display
• Automatic display of station ID by decoding Morse code
• Interfaces with most CDI (w/resolver), HSI, and autopilot systems
• Flight Service Stations, ATC facilities, WX stations, etc.
• Active and standby flip-flop frequencies
• One-touch 121.5 emergency channel tuning
• Comm frequency monitor function (listens to standby while monitoring the active)
• Recall of frequency from database by facility name and type
• Database reverse lookup of frequencies providing station ID andfrequency use (TWR, ATIS, etc.)
• Volume control bar graph display
• Alphanumeric display of frequency types (ATIS, GRND, TWR, etc.)
• High-visibility alphanumeric LCD display
• Transmit status indicator
• Backlit keypad controls
• Automatic and manual, pilot-selectable display intensity control
• Built-in, two-place voice activated intercom
• Frequency memory and recall
• Stores/recalls 15 user defined frequencies
• Stores/recalls previous 20 frequencies used
• Squelch test function
• Stuck mic time-out
• 12W audio amplifier

• TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
• Display size: 4.9" (125 mm) diagonal
• Display resolution: 834 pixels (W) x 370 pixels (H)
• Unit bezel height: 2.65" (67 mm)
• Unit bezel width: 6.25" (159 mm)
• Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
• Unit weight: 5.5 lbs (2.48 kg)
• Input voltage range: 11 VDC - 33 VDC
• Operating temperature range: -20° C to 55° C (-4° F to 131° F)
• Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
• LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
• Maximum velocity: 1,166 knots
• Position update Interval: 0.2 sec (5 Hz)

Garmin products have been designed for compatibility with a wide range of avionics. To confirm compatibility of Garmin equipment with your specific aircraft make/model and current avionics configuration, please consult your Authorized Garmin Dealer.
