DAVTRON INSTRUMENTS

803-28V Davtron M803 Digital Clock

Part No: 803-28V

$495.00
Shipping calculated at checkout.
DESCRIPTION

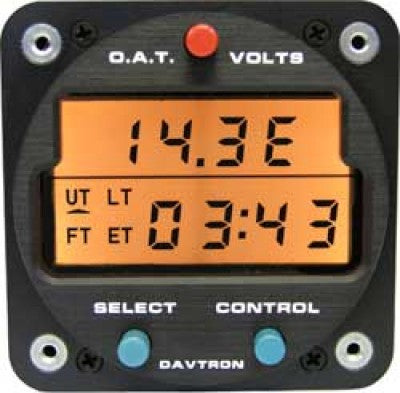

The Davtron M803 Digital Clock

UNIVERSAL TIME
LOCAL TIME
FLIGHT TIME - FLIGHT TIME ALARM
ELAPSED TIME - COUNT UP COUNT DOWN ALARM
OUTSIDE AR TEMPERATURE (F & C)
VOLTMETER
Features

FEATURES:

  • Digital Chronometer
  • 2 1/4" Internal Mount
  • Universal time is in 24 hour format
  • Local time in 12 hour or 24 hour format
  • Elapsed time counter is from one second to 99 hours, 59 minutes
  • Elapsed time alarm is activated when countdown reaches zero
  • One button control steps sequentially through E, F, C:
    • E-Voltage
    • F-O.A.T. Fahrenheit
    • C O.A.T. Centigrade
  • LCD Display
  • NVIS Lighting Green A MIL-STD-3009 option available (see table below)
  • FAA-PMA approved
Specifications
  • Universal Time: 24 hour format
  • Local Time: 12 hour or 24 hour option
  • Flight Time: Records in hours and minutes, up to 99:59
  • Flight Time Alarm: Full set range of flight time
  • Elapsed Time Count Up: Starts in minutes and seconds, then hours and minutes, up to 99:59 hours
  • Elasped Time Countdown: Settable from one second to 59 minutes and 59 seconds
  • Elapsed Time Alarm: Activates at zero when counting down
  • Voltage Range: 8 Volts to 32 Volts ±0.2 Volts Typ. -55°C to +100°C ±0.2°C Typ.
  • Internal Lighting: 240 mA at 5V, 240 mA at 14V, 100 mA at 28V (specify voltage when ordering)
  • Keep Alive Current: 0.004 Amps. 12 to 30 Volts
  • LCD Display
  • Input Voltage: 12 to 30 Volts
  • Input Current: .2 Amps
  • Battery Type: AA memory battery
  • NVIS Option: NVIS Green A lighting
  • Voltage: 12 to 30 Volts
  • Weight: 5.02 ounces
  • Warranty: 1 year
