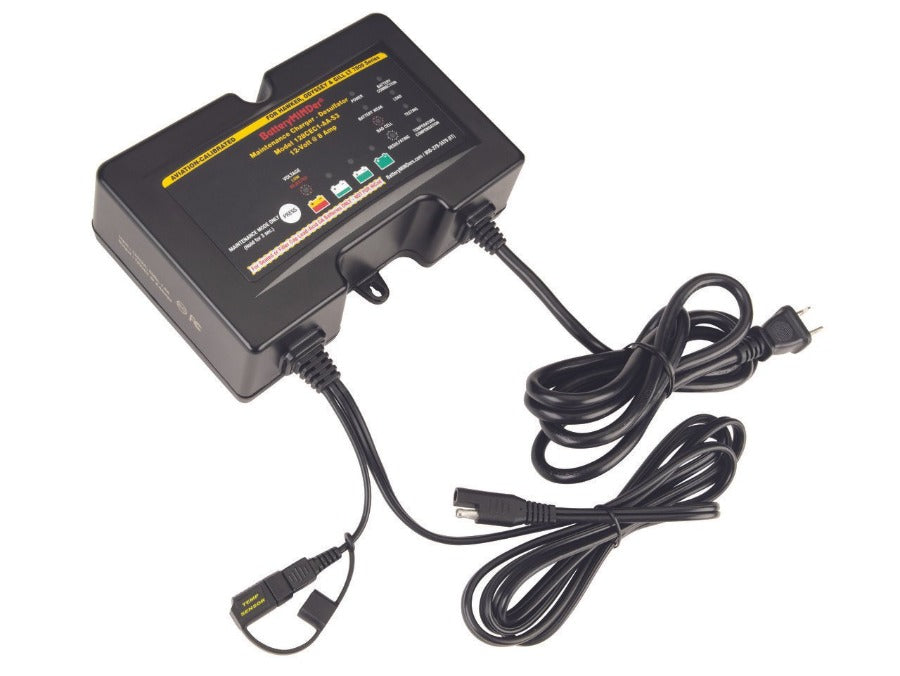

BATTERYMINDER
12 Volt, 8 Amp Aviation Battery Charger/Maintainer/Desulfator
Part No: 128CEC1-AA-S2
DESCRIPTION
These chargers-maintainers-desulfators are designed for all size and type 12-Volt Concorde® Aviation Batteries. If you want the longest possible life and performance from your batteries there is no other product better at doing just this and BatteryMINDer® Guarantees it! In addition to charging and maintaining all 12V Concorde® sealed or wet cell (filler caps) aviation batteries users can now determine the level of charge remaining in their battery, and if weak and in need of replacement, before going bad. Units test for weak/dead cells and will recover weak or severely discharged batteries that other chargers would reject. Known as the CEC1-AA series they feature advancements in easy to understand battery analysis and condition not previously available in any other single model. Their high efficiency design, controlled by industrially-rated microprocessors, allow continuous operation (24 hrs./day) for less than $0.43/month*. Temperature sensors prevents over/under charging from freezing to 130-F.
NONE OF OUR AIRCRAFT MODELS ARE DESIGNED TO FUNCTION AT INPUT VOLTAGES ABOVE 120 VAC EXCEPT WHEN COMBINED WITH AN ISOLATION STEP-DOWN TRANSFORMER.
Features
|
|
Specifications
Voltage: 12V
Charging Current: 8 AMP
Power Source: 90-140 VAC, 47-63 Hz
Temperature Compensation: Yes: -4°F (-20°C) to 122°F (50°C)
Overcharge Protection: Yes
Polarity Reversal Protection: Yes
International Standard IP65*: Dust tight: No ingress of dust; complete protection against contact. Protection from water projected by nozzle (6.3 mm) against enclosure from any direction, no harmful effects.
Multiple Batteries (#): 2
Product Dimensions: 4.9” L x 7.3” W x 2.1” H
Warranty: 5 Year
Works With: 12V Concorde® Aviation Batteries.
Comes with: Auto-Temp Compensation Sensor (Installed), 2' Insulated Battery Clip Cord Set with Quick Connector and 15A replaceable fuse, 2' Ring Terminal Cord Set, Instruction Manual
